SI number

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 01 01 (662)

Consisting of:

1 = 0494034 Holder

NOTE: (Individual counter support)

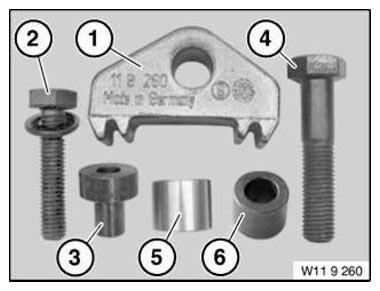

Fig 1: Identifying Holder (119260)

Courtesy of BMW OF NORTH AMERICA, INC.

2 = 0494035 Screw

NOTE: (Bolt (thread M10) with washer) For screwing counter support

3 = 0494129 Bush

NOTE: (Bush for counter support) For counter support, for retaining flywheel when gearbox is removed Engine: N62, N73

4 = 0494130 Screw

NOTE: (Bolt (thread M12)) For counter support for retaining flywheel when gearbox is removed

5 = 0494793 Bush

6 = 0495216 Bush

NOTE: For counter support, for retaining flywheel when gearbox is removed Engine: M57TU2
