01 20 06 (299)

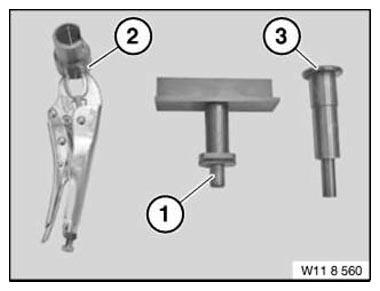

Fig 1: Identifying Tool Set (118560)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 0495744 Holder

NOTE: (Assembly holder) Remaining inventories will be sold off followed by discontinuation - then longer available individually. Available in complete special tool set 83 30 0 495 743 - 11 8 560 only.

2 = 0495745 Pliers

NOTE: (Assembly pliers) Remaining inventories will be sold off followed by discontinuation - then longer available individually.

Available in complete special tool set 83 30 0 495 743 - 11 8 560 only.

3 = 0495746 Mandrel

NOTE: (Assembly mandrel) Remaining inventories will be sold off followed by discontinuation - then longer available individually. Available in complete special tool set 83 30 0 495 743 - 11 8 560 only.

4 = 0496658 Mandrel

NOTE: For installing circlip on gudgeon pin (N55).
