SI number

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 21 00 (642)

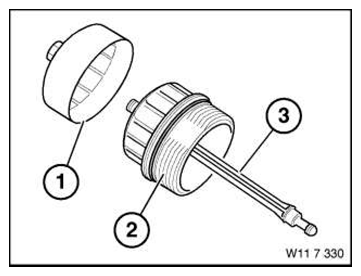

Fig 1: Identifying Connection (117330)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1= 0491081 Oil filter wrench

2= 0491082 Lid

NOTE: (Oil filter cover with connection thread M12)

3= 0491083 Rod

NOTE: (Center rod)
