117000 Ring spanner Mechanical tool

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: (Open ring spanner AF 24) for exhaust-gas recirculation valve

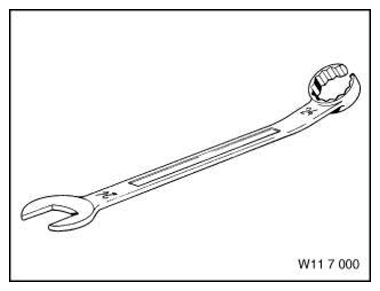

Fig 1: Identifying Ring Spanner (117000)
G11167489Courtesy of BMW OF NORTH AMERICA, INC.
