01 04 98 (304)

Consisting of:

4 = 0495214 Plate

NOTE: (Fixture) Engine: M47T2; M57T2; S85

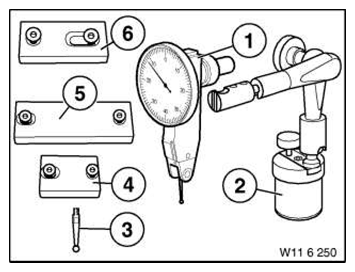

Fig 1: Identifying Measuring Device (116250)

Courtesy of BMW OF NORTH AMERICA, INC.

5 = 0495468 Plate

NOTE: (Fixture M7) Engine camshaft: M67TU

6 = 0495470 Plate

NOTE: (Fixture M8) Engine crankshaft: M67TU

1 = 0493144 Dial gauge

NOTE: (Dial gauge) With 0.8 mm measuring range in each direction

2 = 0493145 Tripod

NOTE: (Small hydraulic tripod with magnetic base)

3 = 0493146 Sensor

NOTE: (Sensor) Sensor arm 11.5 mm
