115060 Measuring device AM

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Temperature sensor) For measuring cylinder head temperature when replacing toothed belt

Consisting of:

1 = 0491050 Measuring device

NOTE: (Device) Old type: TTX 1090/new type: TFN 1093

2 = 0491051 Sensor

NOTE: (Sensor)

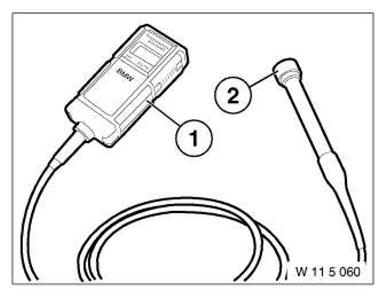

Fig 1: Identifying Measuring Device (115060)

Courtesy of BMW OF NORTH AMERICA, INC.

9 = 0491052 Operating instructions
