SI number

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 17 04 (130)

Consisting of:

1= 0495015 Plate

NOTE: (Base plate with gasket) Liquidation of existing inventory and then available only via complete tool set 11 4 340 = 83 30 0 495 014 - status 29.11.2011

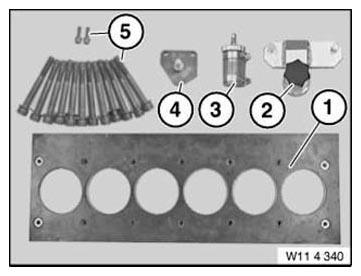

Fig 1: Identifying Device (114340)

Courtesy of BMW OF NORTH AMERICA, INC.

2= 0495016 Plate

NOTE: (Plate with thrust piece) Available only as a complete tool set 11 4 340 = 83 30 0 495 014 - as of 29.11.2011

3= 0495017 Hose

NOTE: (Hose with air connection) Liquidation of existing inventory and then available only via complete tool set 11 4 340 = 83 30 0 495 014 - status 29.11.2011

4= 0495724 Plate

NOTE: (Adapter plate with valve) N54 Liquidation of existing inventory and then available only via complete tool set 11 4 340 = 83 30 0 495 014 - status 29.11.2011

5= 0495725 Screw

NOTE: (Screw set) N54 sale of existing inventory then available as part of set of special tools 11 4 340 = 83 30 0 495 014 only - as of 29.11.2011
