SI number

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 17 04 (130)

Consisting of:

1 = 0495005 Gauge

NOTE: 2 pieces per packaging unit

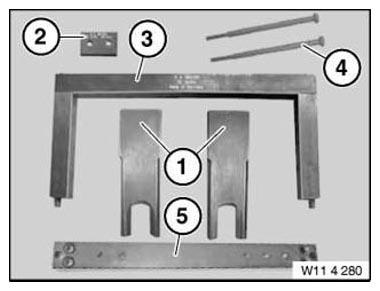

Fig 1: Identifying Gauge (114280)

Courtesy of BMW OF NORTH AMERICA, INC.

2 = 0495006 Adapter

3 = 0495007 Clip

4 = 0495723 Screw

NOTE: 2 pieces per packaging unit = set of screws M6 engine: N54

5 = 0496673 Bridge

NOTE: For securing camshaft at TDC.
