112130 Spindle AM

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For detaching the hub and the toothed belt pulley from the crankshaft

Consisting of:

1 = 0490837 Spindle

NOTE: (spindle with thread M6)

2 = 0490838 Spindle

NOTE: (spindle with thread M8)

3 = 0490839 Nut

NOTE: (Knurled nut) Replaced by 00 9 120 (0 490 504)

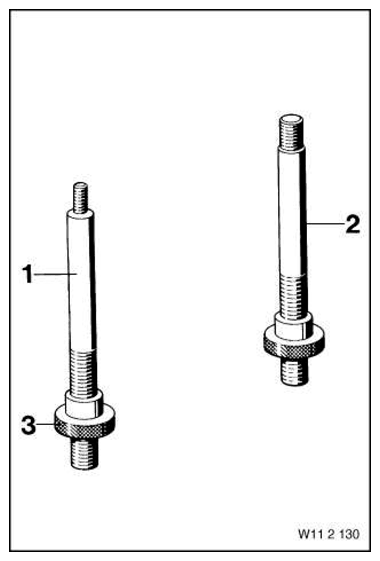

Fig 1: Identifying Spindle (112130)

Courtesy of BMW OF NORTH AMERICA, INC.
