112110 Device AM

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For retightening the connecting rod and cylinder head bolts - Replaced by 00 9 120 (0 490 504)

Consisting of:

1= 0490827 Extension

NOTE: (Extension 1/1") Replaced by 00 9 120 (0 490 504)

2= 0490828 Washer

NOTE: (Graduated disc 180°) Replaced by 00 9 120 (0 490 504)

3= 0490829 Holding sleeve

NOTE: (Guide sleeve) Replaced by 00 9 120 (0 490 504)

4= 0490830 Nut

NOTE: (Knurled nut) Replaced by 00 9 120 (0 490 504)

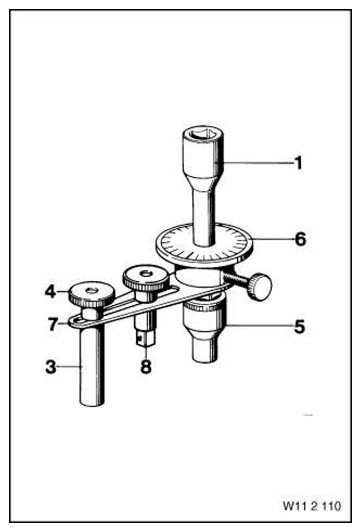

Fig 1: Identifying Device (112110)

Courtesy of BMW OF NORTH AMERICA, INC.

5= 0490831 Socket wrench insert

NOTE: (Socket wrench insert WAF 10) Replaced by 00 9 120 (0 490 504)

6= 0490832 Washer

NOTE: (Graduated disc up to 270°) Replaced by 00 9 120 (0 490 504)

7= 0490833 Tab

NOTE: For counter-holding on the cylinder head Replaced by 00 9 120 (0 490 504)

8= 0490834 Adapter

NOTE: (Adapter) Replaced by 00 9 120 (0 490 504)
