01 09 94 (839)

Consisting of:

1 = 0490779 Strip

NOTE: (Sealing strip) With rubber seal (wide version)

2 = 0490780 Strip

NOTE: (Sealing strip) With rubber seal (narrow version)

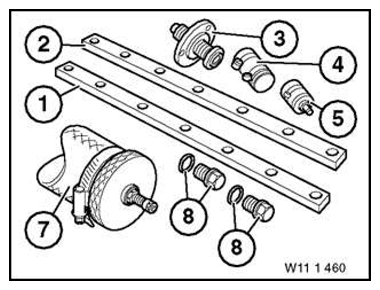

Fig 1: Identifying Device (111460)

Courtesy of BMW OF NORTH AMERICA, INC.

3 = 0490781 Cover

NOTE: For coolant pump connection

4 = 0490782 Hose

NOTE: (Screw hose) Engine: M51

5 = 0490783 Hose

NOTE: (Screw hose) With valve Engine: M51

6 = 0490784 Rubber seal

NOTE: (Rubber seals for sealing strips)

7 = 0490785 Hose

NOTE: (Screw hose) With valve Engine: M41

8 = 0490786 Screw

NOTE: (Screw plugs (2 x))
