SI number

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 04 88 (906)

Consisting of:

1= 0490756 Strip

NOTE: (sealing strip with 7 spigots)

2= 0490757 Strip

NOTE: (sealing strip with 2 spigots)

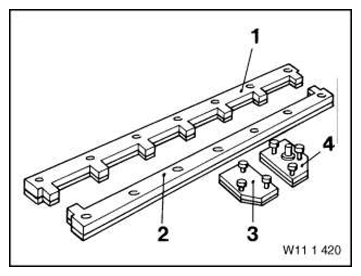

Fig 1: Identifying Device (111420)

Courtesy of BMW OF NORTH AMERICA, INC.

3= 0490758 Plate

NOTE: (cover plate) Engine: M70, M73

4= 0490759 Plate

NOTE: (cover plate with valve) Engine: M70, M73

5= 0490760 Rubber seal

NOTE: (rubber seal) For sealing strips 11 1 421, 11 1 422
