111050 Fitting aid AM

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Mounting accessory) For removing and installing the valve springs Replaced by 11 9 000 (0 494 362)

Consisting of:

1 = 0490692 Clip

NOTE: (Guide bracket, cropped) Engine: S38

2 = 0490693 Basket

NOTE: (Valve spring cage) Engine: S14, S38, M50

3 = 0490694 oddments tray

NOTE: (Board) Engine: S14, S38

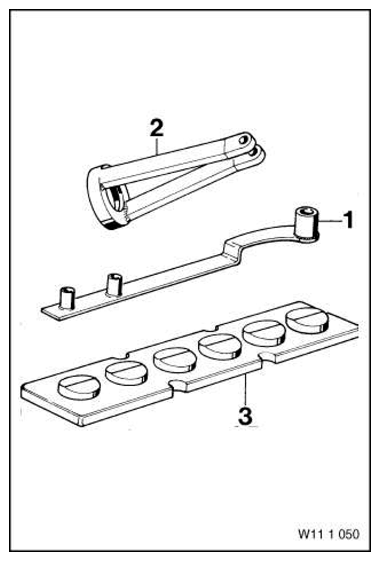

Fig 1: Identifying Fitting Aid (111050)

Courtesy of BMW OF NORTH AMERICA, INC.

9 = 0490695 Nut

NOTE: (Nut (4 pieces) for pressure frame) Engine: M20, M30
