111030 Device AM

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Device) For pressure-testing the cylinder head.

Consisting of:

1 = 0490674 Strip

NOTE: (Sealing strip with rubber padding)

2 = 0490675 Strip

NOTE: (Sealing strip with rubber padding)

3 = 0490676 Upholstery

NOTE: (Rubber padding (2 pieces))

4 = 0490677 Cover

NOTE: (Cover for branch flange)

5 = 0490678 Cover

NOTE: (Cover for connection heating)

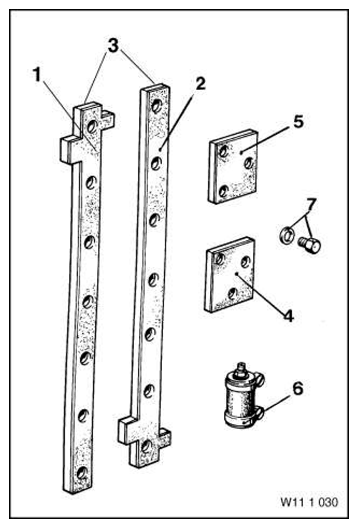

Fig 1: Identifying Device (111030)

Courtesy of BMW OF NORTH AMERICA, INC.

6 = 0490679 Connection

NOTE: (Air connection)

7 = 0490680 Screw

NOTE: (Screw plugs (2 x))
