111020 Device AM

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Tool for pressure-testing cylinder head)

Consisting of:

1= 0490664 Strip

NOTE: (sealing strips (2 pieces))

2= 0490665 Upholstery

NOTE: (Rubber padding (2 pieces))

3= 0490666 Adapter

NOTE: (Adapter) Engine: M20

4= 0490667 Cover

NOTE: (cover for branch flange) Engine: M20

5= 0490668 Adapter

NOTE: (Adapter) Engine: M20

6= 0490669 Adapter

NOTE: (Adapter) Engine: M40

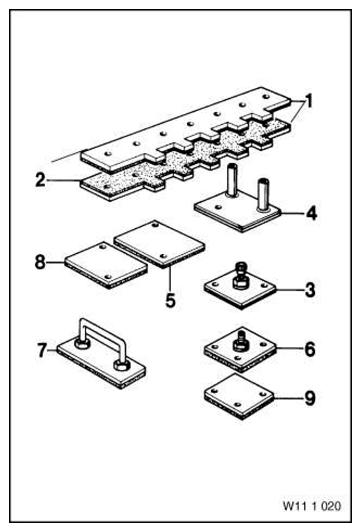

Fig 1: Identifying Device (111020)

Courtesy of BMW OF NORTH AMERICA, INC.

7= 0490670 Plate

NOTE: (Cover plate) For connection duct to water pump - Engine: M40

8= 0490671 Plate

NOTE: (Cover plate for radiator flange connection) Engine: M40

9= 0490672 Plate

NOTE: (Cover plate for heater connection) Engine: M40
