111010 Device AM

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For pressure-testing cylinder head

Consisting of:

1= 0490654 Screw

NOTE: (screws (14 pieces))

2= 0490655 Strip

NOTE: (sealing strips (2 pieces))

3= 0490656 Upholstery

NOTE: (Rubber padding (2 pieces))

4= 0490657 Connection

NOTE: (Air connection with reducer) Engine: M10

5= 0490658 Cover

NOTE: (cover for branch flange) Engine: M10

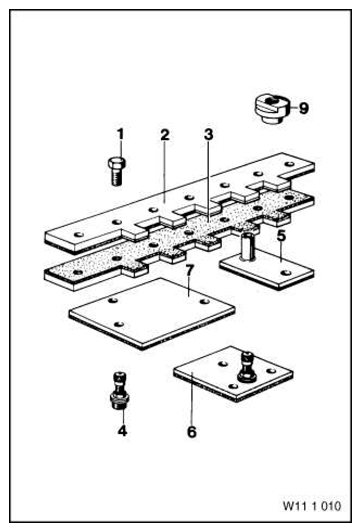

Fig 1: Identifying Device (111010)

Courtesy of BMW OF NORTH AMERICA, INC.

6= 0490659 Connection

NOTE: (Air connection) Engine: M30

7= 0490660 Cover

NOTE: (cover for branch flange) Engine: M30

8= 0490661 Bridge

NOTE: Engine: M30

9= 0490662 Adapter

NOTE: (Adapter) Replaced by 00 9 120 (0 490 504)
