SI number

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 12 93 (701)

Consisting of:

1 = 0490647 Basket

NOTE: (Valve spring cage) Engine: M43, M73

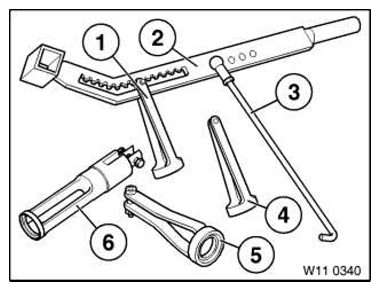

Fig 1: Identifying Fitting Aid (110340)

Courtesy of BMW OF NORTH AMERICA, INC.

2 = 0490648 Lever

NOTE: (compression lever) Engine: all, except M10

3 = 0490649 Hook

NOTE: (hook) Length 220 mm - Engine: all, except M10 Replaced by 11 9 000 (0 494 362)

4 = 0490650 Basket

NOTE: (valve spring cage) Replaced by 11 0 345 , engine: M52

5 = 0490651 Basket

NOTE: (Valve spring cage) Engine: M44, M52, M62, S62, S54 Replaced by 11 9 000 (0 494 362)

6 = 0493285 Basket

NOTE: (Valve spring cage) Engine: M47, M47TU, M57, N40, N42, M67, M67TU
