SI number

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 12 93 (701)

Consisting of:

1= 0490638  Strip

NOTE: (Sealing strip) Engine: M43 Only available as part of complete set

2= 0490639  Strip

NOTE: (Sealing strip) Replaced by 11 0 318  (0 490 645)

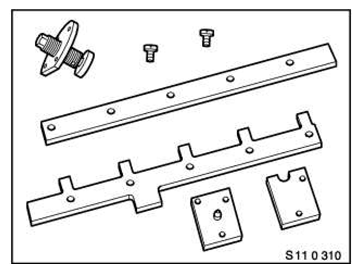

Fig 1: Identifying Device (110310)
G11167214Courtesy of BMW OF NORTH AMERICA, INC.

3= 0490640  Upholstery

NOTE: (Rubber padding (2 pieces)) Engine: M43 Only available as part of complete set

4= 0490641  Cover

NOTE: (Cover for water pump connection) Engine: M43 Only available as part of complete set

5= 0490642  Cover

NOTE: (Cover for radiator connection with valve) Engine: M43 Only available as part of complete set

6= 0490643  Cover

NOTE: (Cover for heater connection) available as part of complete set only

7= 0490644  Screw

NOTE: (Screw plug (2 pieces)) Engine: M43 Only available as part of complete set

8= 0490645  Strip

NOTE: (Sealing strip) Engine: M43 Only available as part of complete set
