SI number

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 05 92 (507)

Consisting of:

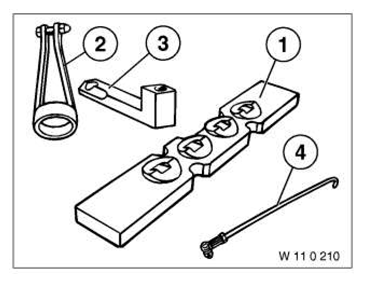

Fig 1: Identifying Fitting Aid (110210)

Courtesy of BMW OF NORTH AMERICA, INC.

1 = 0490609 oddments tray

NOTE: (Board for cylinder head) Engine: M60, M62, S62 Replaced by 11 9 000 (0 494 362)

2 = 0490610 Basket

NOTE: (Valve spring cage) Engine: M60

3 = 0490611 Tab

NOTE: (Retaining tab) Engine: M60, M62, S62

4 = 0490612 Hook

NOTE: Replaced by 11 0 343 /Engine: M60 Replaced by 11 9 000 (0 494 362)
