110160 Compression tester AM

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Compression recorder) manufacturer VDO - Replaced by 11 0 220 (0 490 613)

Consisting of:

1= 0490594 Card

NOTE: (Cards) For compression pressure inscriber Discontinuation and replaced by 11 0 220 (0 490 613)

2= 0490595 Pressure gauge

NOTE: Compression pressure inscriber Discontinuation and replaced by 11 0 220 (0 490 613)

3= 0490596 Guard

NOTE: (Rubber protection) Still available as replacement Discontinuation and replaced by 11 0 220 (0 490 613)

4= 0490597 Line

NOTE: Discontinuation and replaced by 11 0 220 (0 490 613)

5= 0490598 Adapter

NOTE: (test adapter for gasoline engine: all, except M70 Discontinuation and replaced by 11 0 220 (0 490 613)

6= 0490599 Adapter

NOTE: (test adapter for gasoline engine: M70 Discontinuation and replaced by 11 0 220 (0 490 613)

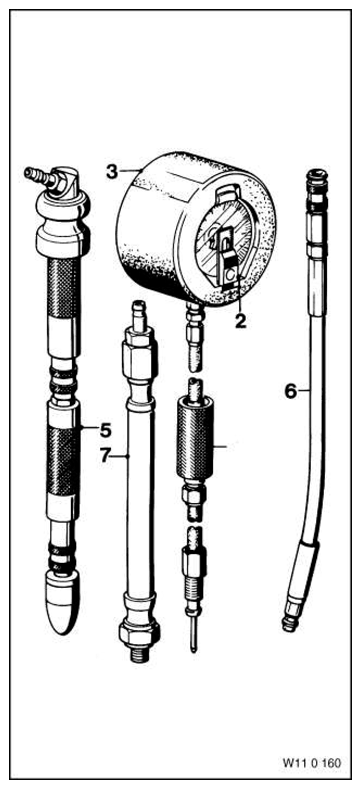

Fig 1: Identifying Compression Tester (110160)

Courtesy of BMW OF NORTH AMERICA, INC.

7= 0490600 Adapter

NOTE: (Test adapter extension)
Discontinuation and replaced by 11 0 220 (0 490 613)
