110060 Device AM

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Pressure testing fixture) For crankcase

Consisting of:

1 = 0490577 Plate

NOTE: (Cover plate) For water pump with valve

2 = 0490578 Bolt

NOTE: (Stud bolts (14 x))

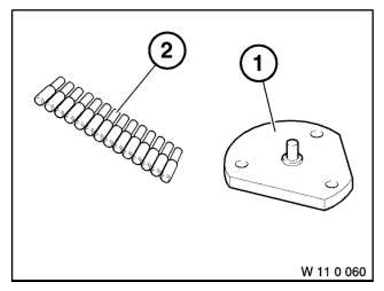

Fig 1: Identifying Device (110060)

Courtesy of BMW OF NORTH AMERICA, INC.
