SI number

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 13 94 (888)

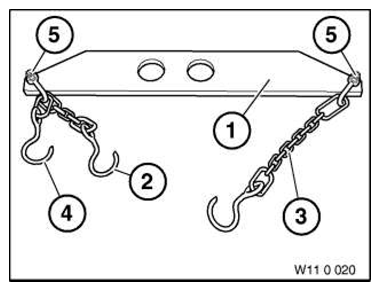

Fig 1: Identifying Lifting Gear (110020)
G11167365Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 0490568  Lifting gear

NOTE: (Cross member) As of 08/2011, only available as a complete set via 11 0 020 = 0490567. Delivered with T V inspection certificate and operating instructions.

2 = 0490569  Chain

NOTE: (Chain) As of 08/2011, only available as a complete set via 11 0 020 = 0490567. Delivered with T V inspection certificate and operating instructions.

3 = 0490570  Chain

NOTE: (Chain) Version: long As of 08/2011, only available as a complete set via 11 0 020 = 0490567.
Delivered with T V inspection certificate and operating instructions.

4 = 0490571  Chain

NOTE: (Chain) Version: short As of 08/2011, only available as a complete set via 11 0 020 = 0490567. Delivered with T V inspection certificate and operating instructions.

5 = 0490572  Shackle

NOTE: (Shackle) 2 pieces As of 08/2011, only available as a complete set via 11 0 020 = 0490567. Delivered with T V inspection certificate and operating instructions.
