11 28 020 Replacing tensioning device for drive belt for alternator (N55)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
Necessary preliminary work:
- Remove DRIVE BELT .

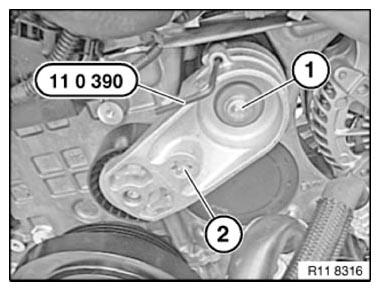

Remove special tool 11 0 390 .
Release screw (1) on belt tensioner.
Tightening torque 11 28 1AZ .
Assemble engine.
