11 65 300 Adjusting electrical controller drive (wastegate valve) (N55)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Basic setting of the wastegate linkage can only be checked or adjusted using the diagnosis.

IMPORTANT: The adjusting nuts (1 and 2) may only countered by using two open-end spanners.

Using just one open-end spanner risks damaging the electrical actuator drive.

Installation note:

Shorten adjustment travel (-).

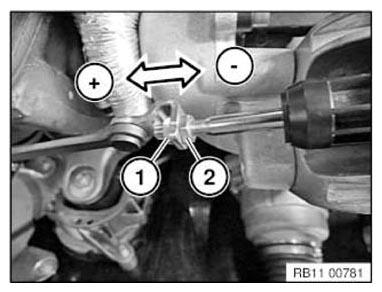

Fig 1: Adjusting Electrical Actuator Drive Nuts Using Open-End Spanners

Courtesy of BMW OF NORTH AMERICA, INC.

Increase adjustment travel (+).

To ensure a reliable setting of the adjustment travel, both adjusting nuts must be marked with a colored mark.

One full turn of the adjusting nut corresponds to an adjustment travel of 0.75 mm .

Example 1:

Actual value measured by the diagnostic function: +0.75 mm.

Required correction: +0.75 mm: 0.75 mm = +1.0 turns.

Adjust the linkage setting correction by turning nut (1) through 1.0 turns in + direction before resetting nut (2) and countering with 6 Nm.

Example 2:

Actual value measured by the diagnostic function: -1, 5 mm.

Required correction: -1.5 mm: 0.75 mm = - 2 turns.

Adjust the linkage setting correction by turning nut (2) through 2 turns in - direction before resetting nut (1) and countering with 6 Nm.

Check basic setting again using diagnosis.

Assemble engine.
