11 40 000 Checking engine oil pressure (N55)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 6 410
11 9 240
11 9 250
13 6 051
2 212 823
11 4 310

IMPORTANT: The regulated oil pump can only be checked and measured with the diagnosis system.

Vehicles with a regulated oil pump have a HYDRAULIC VALVE fitted.

Diagnosis path:

DME Digital Motor Electronics
Complete vehicle
Power train
Engine electronics
Engine oil
Oil-pressure control

Special tool 11 9 250 must be converted for N55

Necessary preliminary tasks:

Connect BMW diagnosis system to vehicle.
Observe diagnosis instructions.
Protect drive belt against dirt
Have a cleaning cloth ready to catch escaping oil

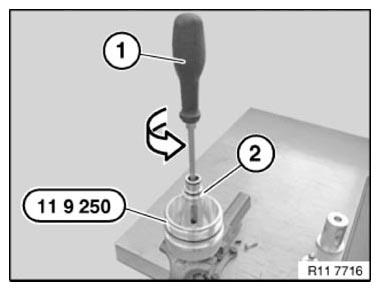

Secure special tool 11 9 250 at hexagon head in a vice.

Release insert (2) using a slotted screwdriver (1) in direction of arrow.

Fig 1: Removing Insert Using Slotted Screwdriver

G11166035

Courtesy of BMW OF NORTH AMERICA, INC.

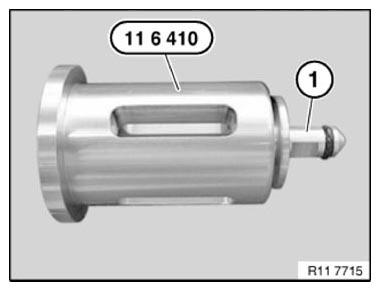

Release screw piece (1) on special tool 11 6 410 .

Fig 2: Identifying Special Tool (11 6 410) And Screw Piece

G11166036

Courtesy of BMW OF NORTH AMERICA, INC.

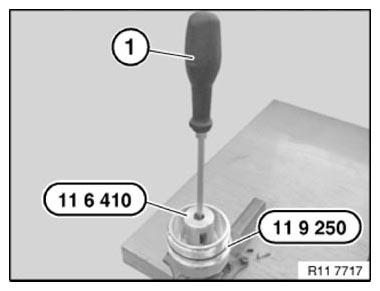

Install special tool 11 6 410 in special tool 11 9 250 .

Insert central bolt with a slotted screwdriver (1) hand-tight.

Fig 3: Inserting Central Bolt Using Screwdriver

G11166037

Courtesy of BMW OF NORTH AMERICA, INC.

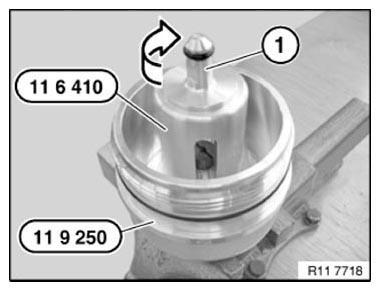

Insert screw piece (1) hand-tight in direction of arrow on special tool 11 6 410 .

Fig 4: Tightening Special Tool (11 6 410) Screw Piece

G11166038

Courtesy of BMW OF NORTH AMERICA, INC.

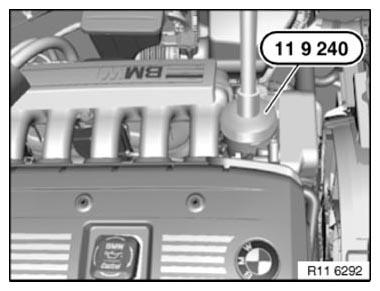

Release oil filter cover with special tool 11 9 240 .

Tightening torque: 11 42 1 AZ .

Fig 5: Removing Oil Filter Cover Using Special Tool (11 9 240)

G11166039

Courtesy of BMW OF NORTH AMERICA, INC.

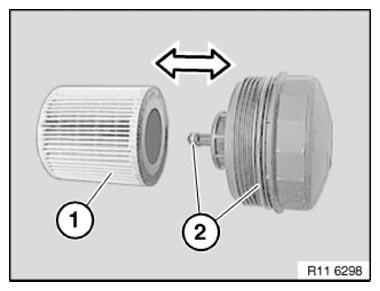

Carefully detach filter element.

Installation note:

Check all O-rings for damage, replace if necessary.

Fig 6: Detaching Oil Filter Element

G11166040

Courtesy of BMW OF NORTH AMERICA, INC.

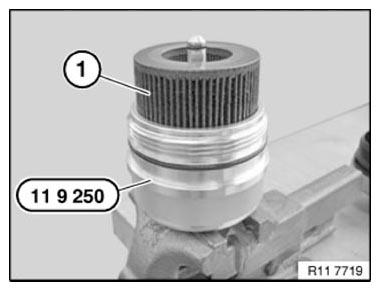

Install filter element (1) in special tool 11 9 250 .

Installation note:

Coat O-ring with engine oil.

Fig 7: Installing Filter Element Into Special Tool (11 9 250)

G11166041

Courtesy of BMW OF NORTH AMERICA, INC.

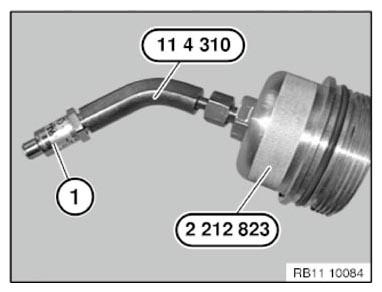

Order number for special tool: Bolt 2 212 823 with 11 4 310.

Screw the pressure sensor (1) hand tight.

Apply light coating of oil to sealing ring at pressure sensor (1) 100 bar.

Fig 8: Identifying Pressure Sensor, Special Tools (2 212 823) And (11 4 310)

G11166042

Courtesy of BMW OF NORTH AMERICA, INC.

Measure the engine oil pressure with diagnosis system.

Order number for special tool: Screw 2 212 823 to oil filter housing.

Special tool 11 4 310 on special tool, order number: 2 212 823.

Screw in pressure sensor (1) 100 bar at special tool 11 4 310 (finger-tight).

Connect cable (2) of IMIB (Integrated Measurement Interface Box) to pressure sensor (1) 100 bar.

Illustration shows N20.

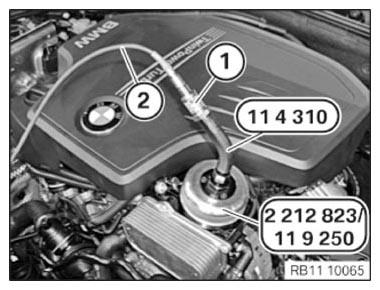

Fig 9: Connecting IMIB Cable And Pressure Sensor Using Special Tools

G11166043

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
