11 61 365 Removing and installing/replacing front left charge air duct (N55): Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove INTAKE PORT .
Remove front UNDERBODY PROTECTION .

Release screw (1).

Tightening torque 17 10 4AZ .

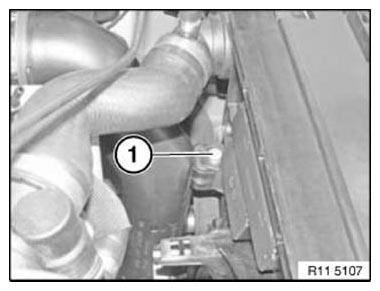

Fig 1: Identifying Front Left Charge Air Duct Screw

G11166131

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock snap fastener (1).

Detach charge air duct (2) from charge air cooler connection (3).

Installation note:

The seal inside the snap fastener must be coated with anti- friction agent.

Charge air duct (2) must snap audibly into place!

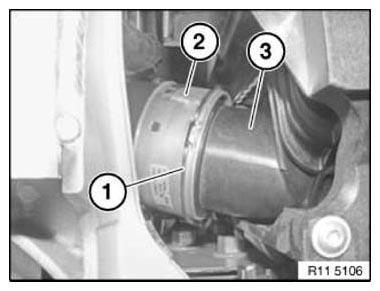

Fig 2: Identifying Charge Air Duct, Charge Air Cooler Connection And Snap Fastener

G11166132

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten hose clamp (2).

Release charge air duct (3) from gaiter (1).

NOTE: Remove charge air duct (3) in upward direction by simultaneously turning counter-clockwise (see direction of arrow).

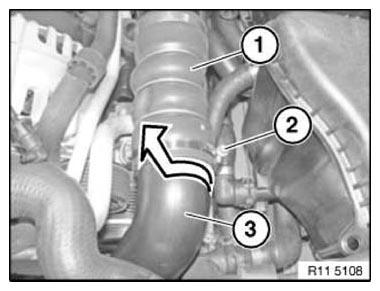

Fig 3: Removing Charge Air Duct From Gaiter

G11166133

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
