SI number

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 14 95 (014)

Consisting of:

1= 0491362 Measuring device

NOTE: (measuring device) Without adapter hoses

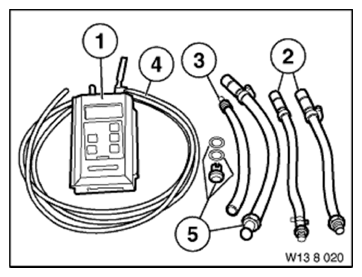

Fig 1: Identifying Measuring Device (138020)

Courtesy of BMW OF NORTH AMERICA, INC.

2= 0491363 Adapter

NOTE: (adapter hose (2 pieces)) With M6connecting nipple and quick-release coupling

3= 0491364 Adapter

NOTE: (adapter hose) With counterpiece for quick-release coupling

4= 0491365 Adapter

NOTE: (adapter hoses) With T-piece for intake pressure connection

5= 0491366 Adapter

NOTE: (adapter hose) With quick-release coupling and ring connection with banjo bolt for testing the output pressure at the metering unit
