SI number

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 12 94 (859)

Consisting of:

4= 0495067  T-piece

NOTE: Liquidation of existing inventory and then available only as a complete tool set 13 6 050 (83 30 0 491 340) - as of 19.01.12

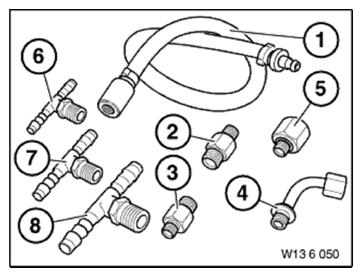

Fig 1: Identifying Adapter (136050)
G11166808Courtesy of BMW OF NORTH AMERICA, INC.

1= 0491341 Hose

NOTE: (Connecting hose) For connecting reducers 13 6 052, 13 6 053, 13 6 55 and adapters 11 4 050, 11 4 160, 11 4 170, 13 5 131 to BMW DIS

2= 0491342 Adapter

NOTE: Liquidation of existing inventory and then available only as a complete tool set 13 6 050 (83 30 0 491 340) - as of 19.01.12

3= 0491343 Adapter

NOTE: Liquidation of existing inventory and then available only as a complete tool set 13 6 050 (83 30 0 491 340) - as of 19.01.12

4= 0491344 Adapter

NOTE: (Adapter)

5= 0491345 T-piece

NOTE: Liquidation of existing inventory and then available only as a complete tool set 13 6 050 (83 30 0 491 340) - as of 19.01.12

6= 0491346 T-piece

NOTE: Liquidation of existing inventory and then available only as a complete tool set 13 6 050 (83 30 0 491 340) - as of 19.01.12

7= 0491347 T-piece

NOTE: Liquidation of existing inventory and then available only as a complete tool set 13 6 050 (83 30 0 491 340) - as of 19.01.12
