136000 Tester AM

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Tester for fuel injectors) for functional check of injection jet and fuel injection rate as well as leakage test, discontinued since 15.05.97

Consisting of:

1= 0491331 Sight glass

2= 0491332 Electronics box

NOTE: (Control module)

3= 0491333 Wiring harness

4= 0491334 Cable

NOTE: (Cable) Power supply cable

9= 0491335 Container

NOTE: (Canister) With lid.

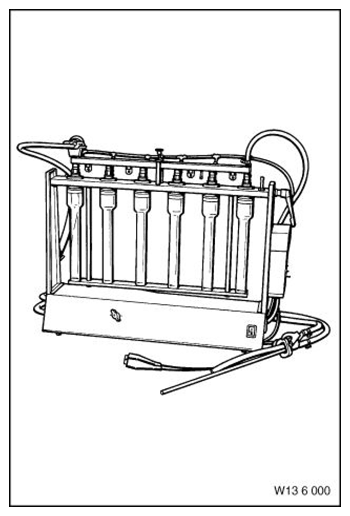

Fig 1: Identifying Tester (136000)

Courtesy of BMW OF NORTH AMERICA, INC.
