135030 Tester AM

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For checking the fuel injection rate at the K-Jetronic

Consisting of:

1= 0491279 Holder

NOTE: (Holder) Discontinuation and replaced by 36 1 030 (0 493 829)

2= 0491280 Measuring glass

NOTE: (Measuring jug) 6 units

3= 0491281 Line

NOTE: (Connecting lines (6 pieces))

4= 0491282 Adapter

NOTE: (Adapter) 6 pieces For connecting the fuel injection lines

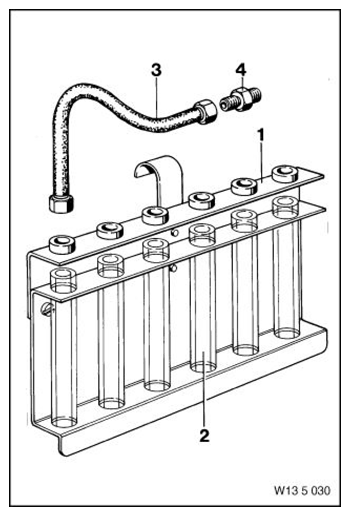

Fig 1: Identifying Tester (135030)

Courtesy of BMW OF NORTH AMERICA, INC.
