133020 Measuring glass Mechanical tool

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: (Measuring glass) For checking electric fuel pumps - delivery rate

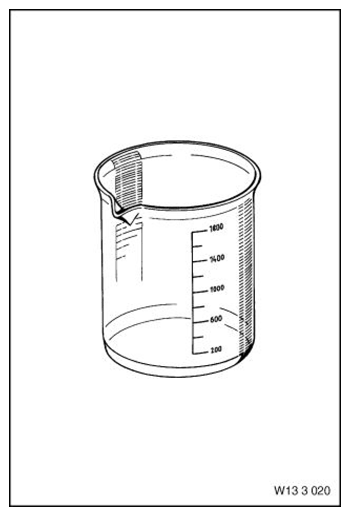

Fig 1: Identifying Measuring Glass (133020)
G11166884Courtesy of BMW OF NORTH AMERICA, INC.
