131090 Tool AM

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (tool set) For fitting tamper protection, Miscellaneous: Japan and USA only

Consisting of:

1= 0491245 Drill bit

NOTE: (drill) drill, small (K-Jetronic)

2= 0491246 Drill bit

NOTE: (drill) drill, large (L-Jetronic)

3= 0491247 Puller

NOTE: (puller, small (K-Jetronic))

4= 0491248 Puller

NOTE: (puller, large (L-Jetronic))

5= 0491249 Device

NOTE: (mounting device (K-Jetronic))

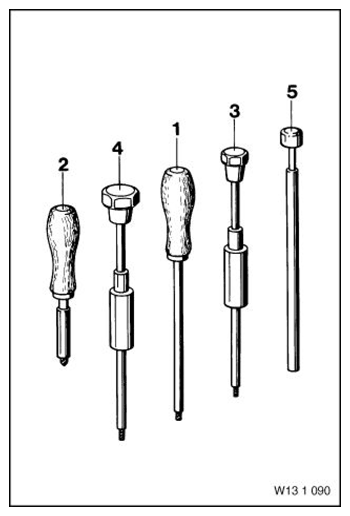

Fig 1: Identifying Tool (131090)

Courtesy of BMW OF NORTH AMERICA, INC.
