SI number

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 18 09 (578)

Consisting of:

1= 0496769  Fitting aid

NOTE: Not available individually, but as part of set 0496668 (130280) only.

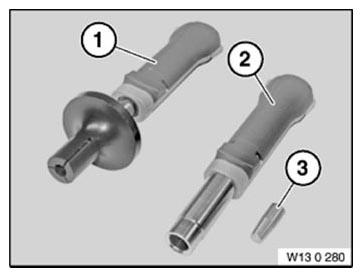

Fig 1: Identifying Fitting Aid (130280)
G11166848Courtesy of BMW OF NORTH AMERICA, INC.

2= 0496770 Guide

NOTE: Not available individually, but as part of set 0496668 (130280) only.

3= 0496771 Holding sleeve

NOTE: Not available individually, but as part of set 0496668 (130280) only.
