13 62 582 Removing and installing/replacing oil temperature sensor (N55)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Scalding hazard!

Only perform this work on an engine that has cooled down.

Necessary preliminary work:

Turn off ignition
Remove THROTTLE BODY

Recycling:

Catch and dispose of emerging engine oil.

Observe country-specific waste disposal regulations.

Unlock plug (1) and remove.

Release oil temperature sensor (2).

Tightening torque 13 62 7AZ .

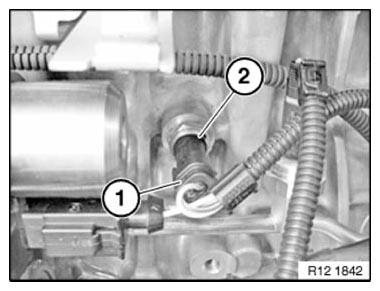

Fig 1: Identifying Oil Temperature Sensor And Plug

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Add final details to vehicle

Check engine oil level. Top up engine oil if necessary.
