13 62 560 Removing and installing/replacing hot film air mass meter (N55)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Read out fault code memory of the DME control unit.
Switch off ignition
Remove IGNITION COIL COVER

Release clamps (1).

Tightening torque 13 71 3AZ .

Release connector (2) on hot film air mass meter and disconnect.

Disconnect clean air pipe (3) from rubber mount at top and remove.

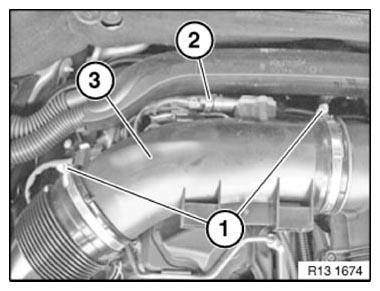

Fig 1: Identifying Clean Air Pipe And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 13 71 4AZ .

Pull hot-film air mass meter (2) out of upper section of clean air pipe.

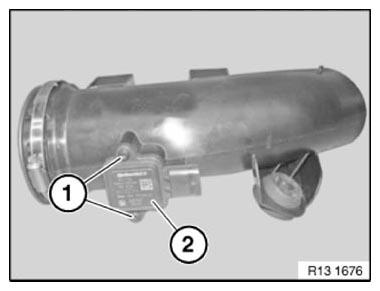

Fig 2: Identifying Hot Film Air Mass Meter And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.

Delete fault memory.
