13 53... Remove, install replace one injector N55 as from engine number 14407685 (hold-down device concept at the top)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

It is of vital importance to adhere to the WARNINGS ON REMOVING THE INJECTORS !

Necessary preliminary tasks:

Disconnect NEGATIVE BATTERY TERMINAL (risk of fire due to short-circuiting on dismantling).
Remove IGNITION COIL of corresponding cylinder.
Disconnect PRESSURE LINES of corresponding cylinder.

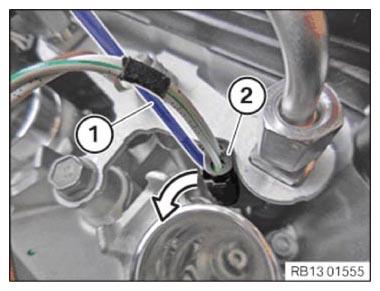

Unlock and disconnect the connectors (2) from the injectors with a small slotted screwdriver (1).

Unlock the lock in the direction of the arrow with a small slotted screwdriver (1).

Disconnect the connector (2) on the connector housing from the injector.

Fig 1: Disconnecting Connectors From Injectors With Small Slotted Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following description applies to all injectors in cylinders 1-6.

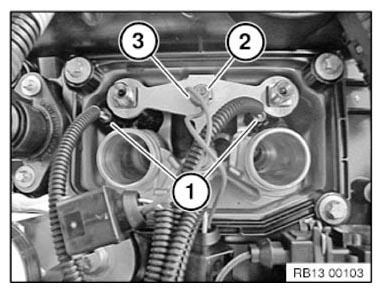

Unlock connector (1) from injectors and detach.

Slacken nut (2).

Tightening torque 12 90 5AZ .

Remove ground cable (3).

Fig 2: Identifying Connector, Ground Cable And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

First, release screw (2). The, release screw (1).

Otherwise, the hold-down device may tilt.

Remove holding-down element (3).

Pull injectors upward out of cylinder head and remove.

Fig 3: Identifying Hold-Down Device And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If several injectors are removed, ensure that each injector is reinstalled in its original installation location (cylinder).

Mark injectors.

Procedure in event of stuck injector:

Use special tool 13 0 320 to remove injectors that are stuck.

Lightly oil pull-out thread (1) and unscrew completely (see illustration) before using the special tool.

Attention!

Pull-out thread (1) is a left-hand thread!

Fig 4: Identifying Pull-Out Thread

Courtesy of BMW OF NORTH AMERICA, INC.

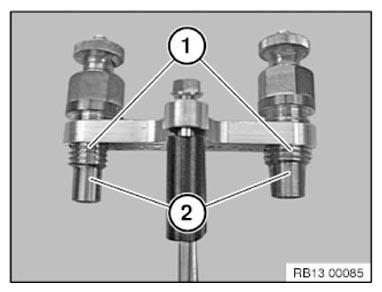

Fit special tool (1) 13 0 320 on injector slot. Join screws (2) to injector slot by a few threads. Screw in pull-out thread (4) until it is possible to screw the threaded sleeves (3) onto the injectors. Screw threaded sleeves (3) onto injectors and tighten down.

Tighten down screws (2).

Tightening torque 13 53 13AZ .

Fig 5: Identifying Pull-Out Thread And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Set torque wrench (1) to 5 Nm clockwise rotation. Together with special tool 13 0 320 this corresponds to a tensile force of max. 2000 N. The injector must be replaced if the torque wrench is activated when the injector is pulled out!

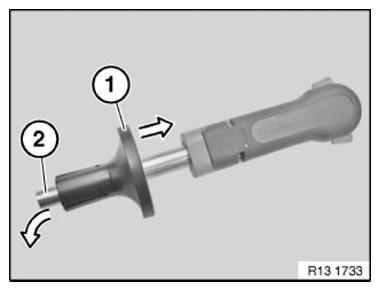

Fit torque wrench (1) and special tool (2) 00 9 170 on hexagon head (3) of special tool 13 0 320 .

Turn torque wrench (1) in clockwise direction until the injector is pulled out.

Fig 6: Fitting Special Tool (00 9 170) On Special Tool (13 0 320)

Courtesy of BMW OF NORTH AMERICA, INC.

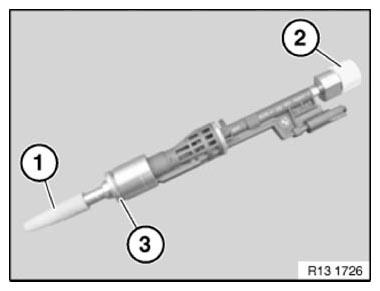

After removing, fit protective caps (1 and 2) to injector tip and fuel line connection.

Installation note:

When installing a new injector:

Install decoupling element (3) without fail !

Failure to comply with this requirement may result in line breaks and fuel discharge!

Fig 7: Identifying Protective Caps And Decoupling Element

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

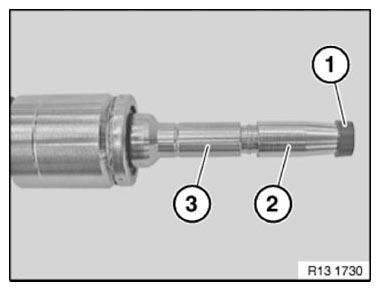

When reusing a running injector:

Replace decoupling element (1) without fail !
Replace Teflon ring (2) without fail !

A Teflon ring that has already been installed once in the cylinder head must be replaced before the injector is reinstalled.

Failure to comply with this requirement may result in line breaks and fuel discharge!

Fig 8: Identifying Decoupling Element And Teflon Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Replace Teflon ring:

Before replacing the Teflon ring (1), make sure your hands and the support areas are clean and free of oil.

Avoid mechanical contact with injector tip (2).

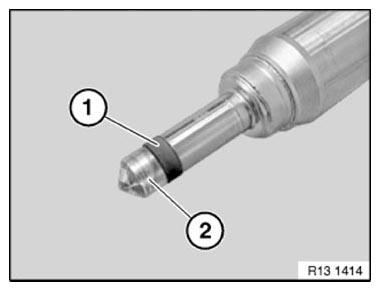

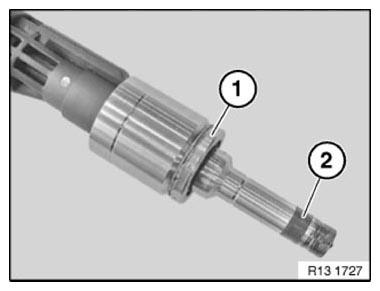

Fig 9: Identifying Teflon Ring And Injector Tip

Courtesy of BMW OF NORTH AMERICA, INC.

Remove Teflon ring (2) with special tool (3) 13 0 191 from injector (1).

Use a fluff-free cloth only to remove combustion residues from cylindrical part of injector tip (do not use ultrasound or other tools/agents).

Do not clean injector tip.

Fig 10: Removing Teflon Ring From Injector Using Special Tool (13 0 191)

Courtesy of BMW OF NORTH AMERICA, INC.

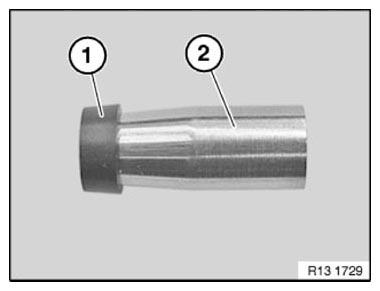

Push new Teflon ring (1) onto the installation cone (2) 13 0 283 .

Fig 11: Identifying Teflon Ring And Installation Cone

Courtesy of BMW OF NORTH AMERICA, INC.

Mount Teflon ring (1) with installation cone (2) 13 0 283 onto injector tip (3).

NOTE:

Do not use fingernails to slide Teflon ring on.
Do not use any lubricating agents.
The sealing ring is expanded when slid on.

Fig 12: Identifying Teflon Ring, Injector Tip And Installation Cone

Courtesy of BMW OF NORTH AMERICA, INC.

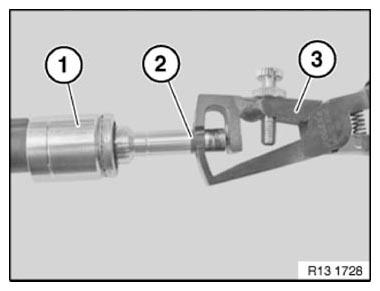

Using special tool (1) 13 0 281 push Teflon ring into injector groove (3).

Fig 13: Pushing Teflon Ring Into Injector Groove

Courtesy of BMW OF NORTH AMERICA, INC.

To bring the widened Teflon ring to installation size, push special tool (1) 13 0 282 as far as it will go onto injector (2).

Do not use any lubricating agents.

Fig 14: Pushing Special Tool (13 0 282) Onto Injector

Courtesy of BMW OF NORTH AMERICA, INC.

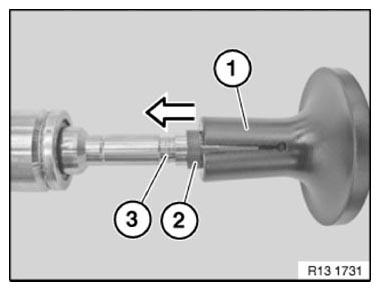

NOTE: Pull mounting tip (1) of special tool 13 0 282 towards rear to release mounting taper (2) 13 0 281 .

Fig 15: Pulling Mounting Tip

Courtesy of BMW OF NORTH AMERICA, INC.

Installing injector:

Attention!

Injection quantity compensation!

An injection quantity compensation must be carried out if an injector is replaced or changed on the cylinder side.

Injection quantity compensation is carried out with the aid of a so-called adjustment value.

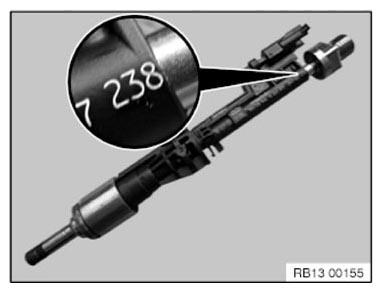

The adjustment value is printed in three digits on the injector body.

The adjustment value must be read off before installation!

Fig 16: Identifying Injector Adjustment Value

Courtesy of BMW OF NORTH AMERICA, INC.

Enter the adjustment value according to the installation location (cylinder) of the injector.

If injector quantity compensation is not carried out, the engine may run roughly or fail to start.

Injection quantity compensation is described at the end of these instructions.

Insert injectors in injector bores.

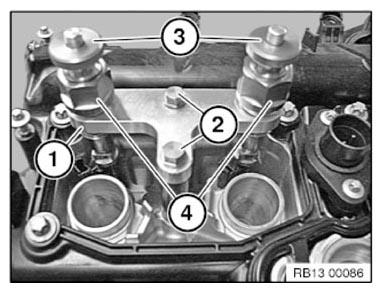

Fit special tool (1) 13 0 320 on injector slot. Join screws (2) to injector slot by a few threads. Screw in the pull-out thread (4) until the threaded sleeves (3) can be screwed onto the injectors. Screw threaded sleeves (3) onto injectors and tighten down.

Tighten down screws (2).

Tightening torque 13 53 13AZ .

Fig 17: Identifying Pull-Out Thread And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

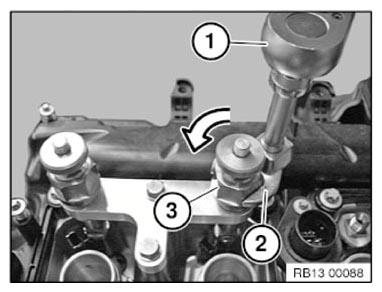

Set torque wrench (1) to 2 Nm counter-clockwise rotation.

Fit torque wrench (1) and special tool (2) 00 9 170 on hexagon head (3) of special tool 13 0 320 .

Turn torque wrench (1) in counterclockwise direction until 2 Nm are reached.

Fig 18: Fitting Special Tool (00 9 170) On Special Tool (13 0 320) Hexagon Head

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

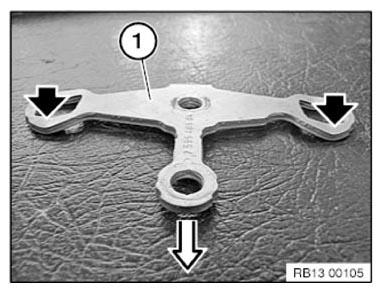

Install hold-down device (1) with curvatures (black arrows) downward.

Fig 19: Installing Hold-Down Device

Courtesy of BMW OF NORTH AMERICA, INC.

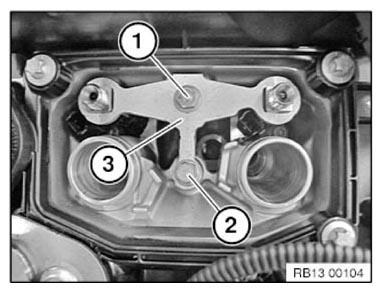

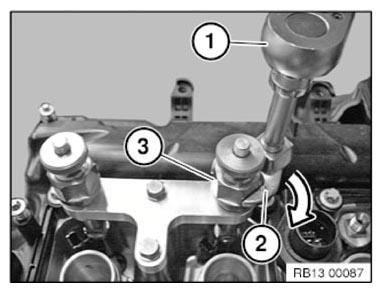

Fit hold-down device (3) on injectors.

Tighten screws (1) and (2) only hand-tight.

Fig 20: Identifying Hold-Down Device And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

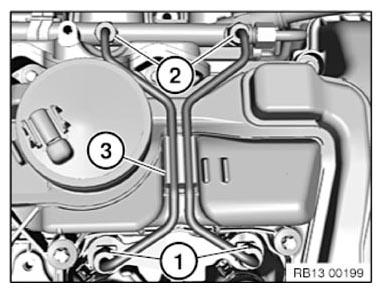

Install pressure lines on injectors and rail.

Tighten nuts (1) and (2) manually only.

Installation note:

Reinstall line damper (3).

Fig 21: Identifying Nuts And Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Firstly tighten screw (1).

Tightening torque 13 53 6AZ .

Then tighten down screw (2).

Tightening torque 13 53 6AZ .

Fig 22: Identifying Hold-Down Device And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

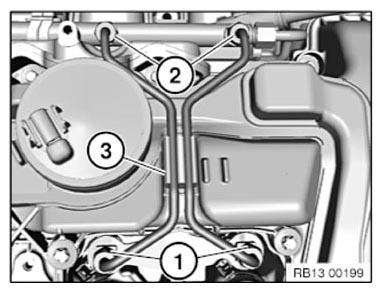

Tighten down pressure lines on injectors (1).

Tightening torque 13 53 9AZ .

Then tighten down pressure lines (2) on the rail.

Tightening torque 13 53 9AZ .

Installation note:

Reinstall line damper (3).

Fig 23: Identifying Nuts And Damper

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following description applies to all injectors.

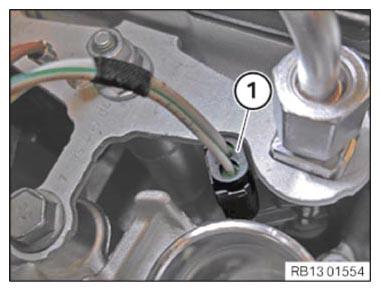

Noticeably connect connector (1) to the injectors.

Mount the ground cable (3).

Tighten nut (2).

Tightening torque 12 90 5AZ .

Fig 24: Identifying Connector, Ground Cable And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Check all connectors (1) on the injectors again for correct fit and make sure that all connectors have noticeably engaged.

Fig 25: Identifying Connectors On Injectors

Courtesy of BMW OF NORTH AMERICA, INC.

Perform an injection quantity compensation:

The adjustment value is printed with three digits - depending on the version - on the injector body.

Connect BMW diagnosis system.
Identify vehicle.
Select "Function selection."
Select "Service functions."
Select "Engine electronics."
Select "Adjustment functions."
Select "Adjust injectors."
Select "Test plan"
For each replaced injector, the adjustment value must be entered according to the installation location (cylinder).

Fig 26: Identifying Injector Adjustment Value

Courtesy of BMW OF NORTH AMERICA, INC.

Clean spark plug slot.

Assemble engine.

Check fuel system for leak tightness.

Check function of DME.
