13 53 332 Removing and installing/replacing feed line (Bosch high pressure pump) (N55)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

WARNING: Disconnect NEGATIVE BATTERY TERMINAL (risk of fire due to short circuit on dismantling).

Electric fuel pump starts up automatically when door is opened!

Carry out installation work on fuel system only with coolant temperature below 40 °C.

Wear safety goggles.

IMPORTANT: Adhere to conditions of absolute cleanliness when working on the high-pressure fuel system.

Introduced contaminants can cause malfunctions in the system!

Do not allow any dirt particles or foreign bodies to get into the system.
Remove all traces of dirt before removing lines or separate components.
Use only fluff-free cloths.
Seal all fuel system openings with protective caps or plugs.

IMPORTANT: Ignition coils must not be contaminated by fuel.

The resistance of the silicone material is reduced significantly by contact with fuel, which may cause the ignition coil to fail!

Cover ignition coil with suitable means.

Necessary preliminary tasks:

Remove INTAKE PLENUM .

Recycling:

Fuel escapes when fuel lines are detached.

Catch and dispose of escaping fuel in a suitable container.

Observe country-specific waste disposal regulations.

Unlock and detach vacuum line (1) from the vacuum pump.

Unlock and pull off connector (2) from the high pressure pump and connector (3) from the oil temperature sensor.

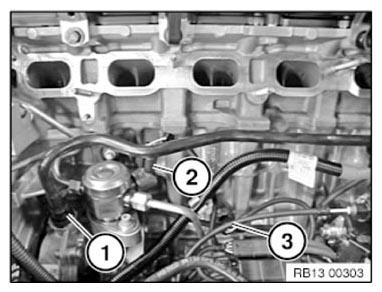

Fig 1: Identifying High Pressure Pump And Oil Temperature Sensor Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) below cable channel (2).

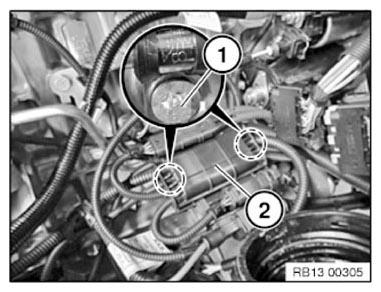

Fig 2: Identifying Cable Channel And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release fuel hose (3) and seal with special tool (1) 13 5 160 .

Release nut (1) on high pressure pump.

Remove feed line (2).

Close off feed line and high pressure pump with a matching plug from set of special tools 32 1 270 .

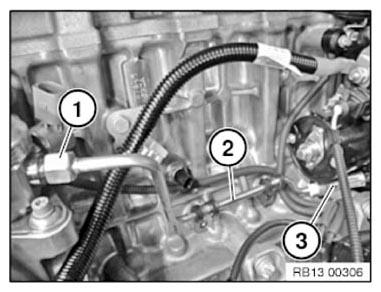

Fig 3: Identifying Feed Line And High Pressure Pump Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

First, fit feed line on high pressure pump and engine block only hand-tight . Do not connect fuel hose to the feed line yet.

Tighten screws (1) below the cable channel.

Tightening torque 13 53 10AZ .

Fig 4: Identifying Cable Channel And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten union nut (1) with special tool 13 5 020 .

Tightening torque 13 53 7AZ .

Re-connect fuel hose (3) to feed line.

Fig 5: Identifying Feed Line And High Pressure Pump Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check fuel system for tightness.

Check function of DME.
