84 31 020 Removing and installing/replacing hands-free system speaker
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove TRIM FOR PEDAL ASSEMBLY

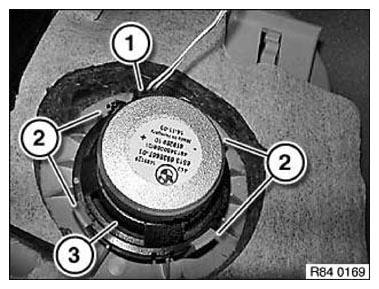

Disconnect plug connection (1).
If necessary, release cable tie from catches (2).
Unlock catches (2) and remove speaker (3) from mounting.
Installation:
Catches (2) must not be damaged.
Guide lugs of mounting must be seated in grooves of speaker (3).
Speaker (3) must snap audibly into place in mounting.
