84 50 060 Removing and installing/replacing Bluetooth aerial

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM PANEL FOR PEDAL ASSEMBLY .

Unclip Bluetooth aerial (1) and remove from trim panel for pedal assembly (2).

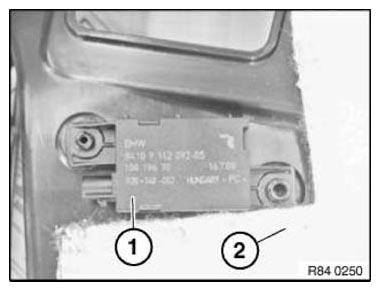

Fig 1: Identifying Bluetooth Aerial And Pedal Assembly

Courtesy of BMW OF NORTH AMERICA, INC.
