35 40 001 Removing and installing or replacing accelerator pedal module

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Take off cap.

Release screw.

Pull accelerator pedal module upwards out of fixture.

Installation:

Tightening torque 35 40 1AZ .

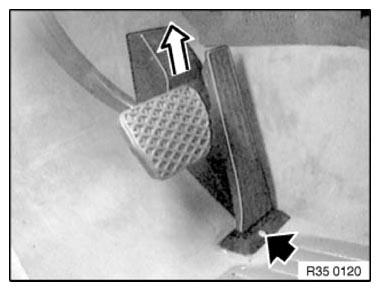

Fig 1: Pulling Accelerator Pedal Module Upwards Out Of Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off plug (1).

Remove accelerator pedal module.

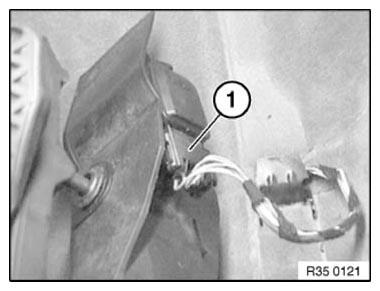

Fig 2: Identifying Accelerator Pedal Module Plug

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Accelerator pedal module can only be replaced completely with adapter plate.
