66 12 100 Removing and installing/replacing slide-in unit for radio-operated key

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: In the event of complaint "slide-in unit for radio-operated key jams or can not be retained", carry out following checks before replacement:

Check both sides of plug connection of ribbon cable (2) to slide-in unit for radio-operated key (1) for correct locking (3).
Check ribbon cable (4) for damage.

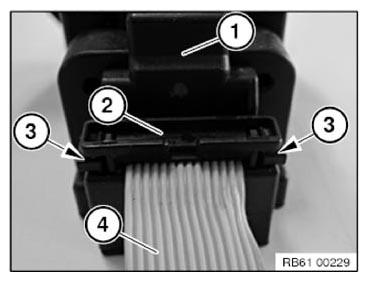

Fig 1: Identifying Ribbon Cable And Radio-Operated Key

Courtesy of BMW OF NORTH AMERICA, INC.

If required, lock plug connection of ribbon cable (2) correctly and carry out function check.

If this rectifies fault pattern, do not replace slide-in unit for radio-operated key.

Necessary preliminary tasks:

Remove LOWER LEFT TRIM FROM INSTRUMENT PANEL

Replacement:

Release screw (1).

Remove slide-in unit for radio-operated key (2) from trim panel (3) in direction of arrow.

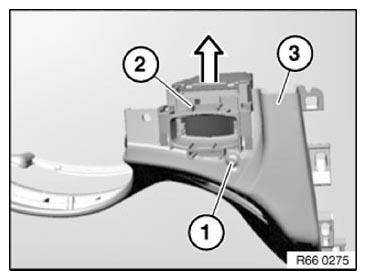

Fig 2: Removing Slide-In Unit For Radio-Operated Key From Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
