67 31 521 Removing and installing/replacing seat height adjustment drive unit
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FRONT SEAT

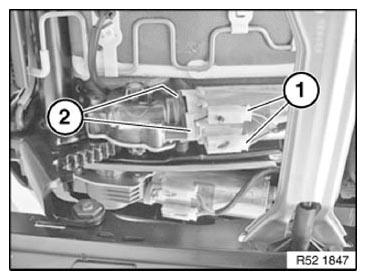

Unlock plug connections (1) and disconnect.
Unfasten screws (2).
Remove seat height adjustment drive unit.
Installation note:
Make sure drive shaft is correctly seated in gearbox.
