67 31 511 Removing and installing/replacing drive unit for seat tilt adjustment
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FRONT SEAT

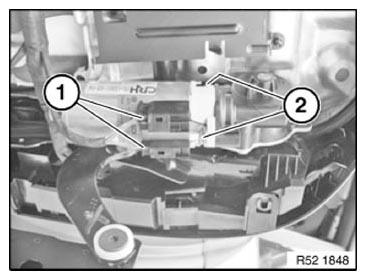

Unlock plug connections (1) and disconnect.
Unfasten screws (2).
Installation:
Make sure drive shaft is correctly seated in gearbox.
