63 26 000 Removing and installing/replacing left or right number/license plate light

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Lever out number/license plate light (1) with special tool 64 1 020 as illustrated.

Disconnect associated plug connection and remove number/license plate light (1).

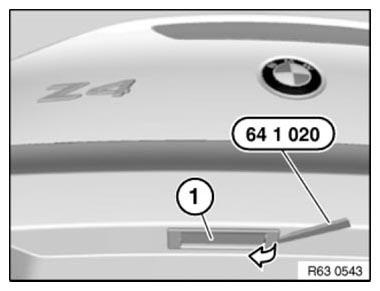

Fig 1: Removing Number/License Plate Light Using Special Tool (64 1 020)

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Replace NUMBER/LICENSE PLATE LIGHT
