37 15 055 Removing and installing/replacing EDC control unit

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

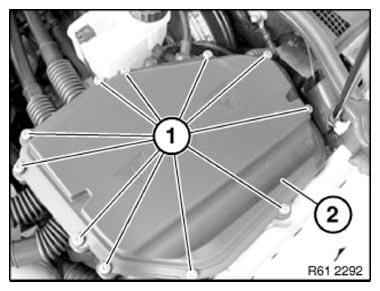

Release screws (1).

Remove electronics box cover (2).

Fig 1: Identifying Electronics Box Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

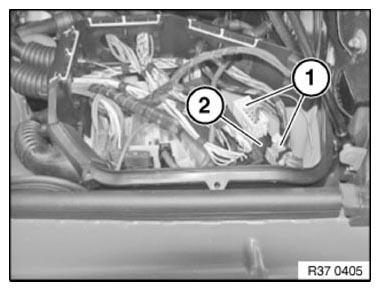

Unlock plug connections (1) and disconnect.

Unlock control unit (2) and remove upwards from holder.

Fig 2: Identifying Control Unit Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Carry out PROGRAMMING/CODING
