37 14 512 Replacing rear ride-height sensor

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

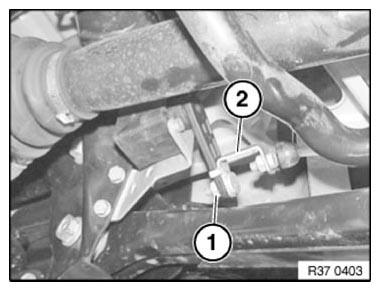

Release nut (1) and disengage jointed rod with lever extension (2).

Tightening torque 37 14 3AZ .

Fig 1: Identifying Jointed Rod Lever Extension And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

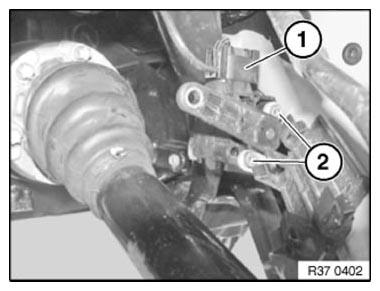

Unfasten plug connection (1) and disconnect.

Release screws (2) and remove ride-height sensor.

Tightening torque 37 14 1AZ .

Installation:

Sensor lever (3) must point from ride-height sensor in direction opposite to direction of travel.

Fig 2: Identifying Ride-Height Sensor Screws And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
