37 14 511 Replacing front ride-height sensor

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Unfasten plug connection (2) and disconnect.

Release nut (1) and disconnect jointed rod.

Tightening torque 37 14 7AZ .

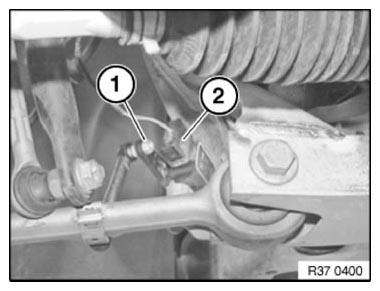

Fig 1: Identifying Ride-Height Sensor Plug Connection And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove ride-height sensor.

Tightening torque 37 14 5AZ .

Installation:

Sensor lever must point to front from ride-height sensor.

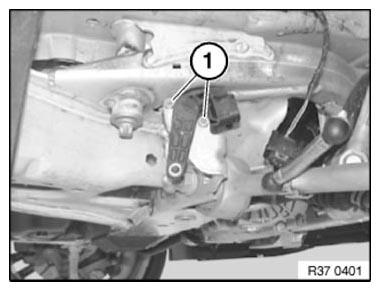

Fig 2: Identifying Ride-Height Sensor Screws

Courtesy of BMW OF NORTH AMERICA, INC.
