2210785 Locating fixture Minimum set: Mechanical tools AM

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For attaching and aligning the laser on the spring strut.

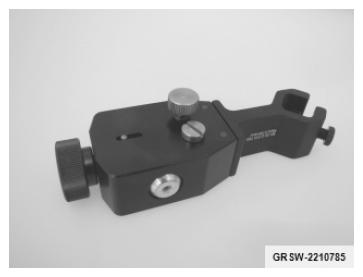

Fig 1: Identifying Locating Fixture (2210785)
G08492241Courtesy of BMW OF NORTH AMERICA, INC.
