2210781 Measurement aid Minimum set: Mechanical tools AM

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Prism with mirror, for aligning the laser beam.

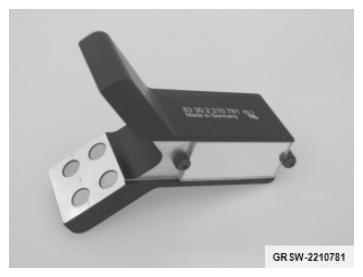

Fig 1: Identifying Measurement Aid (2210781)
G08492246Courtesy of BMW OF NORTH AMERICA, INC.
