41 14 502 Replacing Rear Left Outer Wheel Arch Section (Rear Left Side Wall Removed)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Spot-weld bonding is used on this vehicle. Observe specific procedure. See SPOT-WELD BONDING STEEL COMPONENTS and OPENING BONDED CONNECTIONS .

Use only approved SPOT-WELDING APPARATUS for repairs.

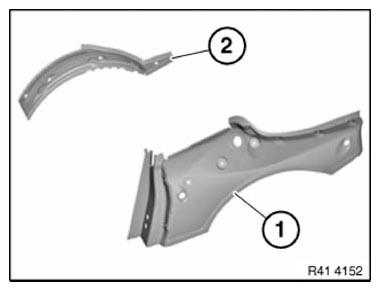

Following new body parts are required:

(1) B-pillar, outer left
(2) Side section, inner left
(3) Cavity acoustic baffle, window cavity (not pictured)

Fig 1: Identifying B-Pillar, Outer Left, Side Section, Inner Left And Cavity Acoustic Baffle, Window Cavity

Courtesy of BMW OF NORTH AMERICA, INC.

Removal of the outer wheel arch section

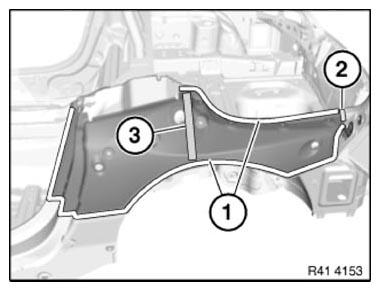

Open welded connections in areas (1).

Open brazed connection in area (2).

Undo B-pillar from cavity sealing (3) and remove.

Fig 2: Identifying Weld, Brazed Joints Area And Cavity Sealing Area

Courtesy of BMW OF NORTH AMERICA, INC.

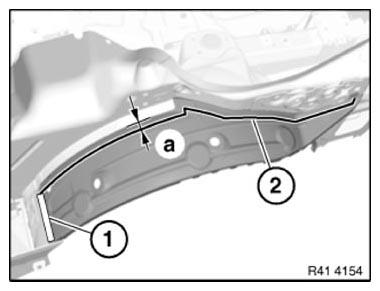

Mark severance cut (1) in accordance with dimension and cut.

Measurement a = 20 mm from inner wheel arch section.

Open welded connections in area (1).

Installation note:

New part is welded overlapping in area of severance cut.

Fig 3: Identifying Weld Joint Area With Severance Cut

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Mark severance cut on new part according to severance cut on vehicle + 20 mm material extra and cut.

Installation of outer wheel arch section

Apply sealant to new CAVITY SEALING .

Install and weld new parts.
